Power supplies & measuring instruments

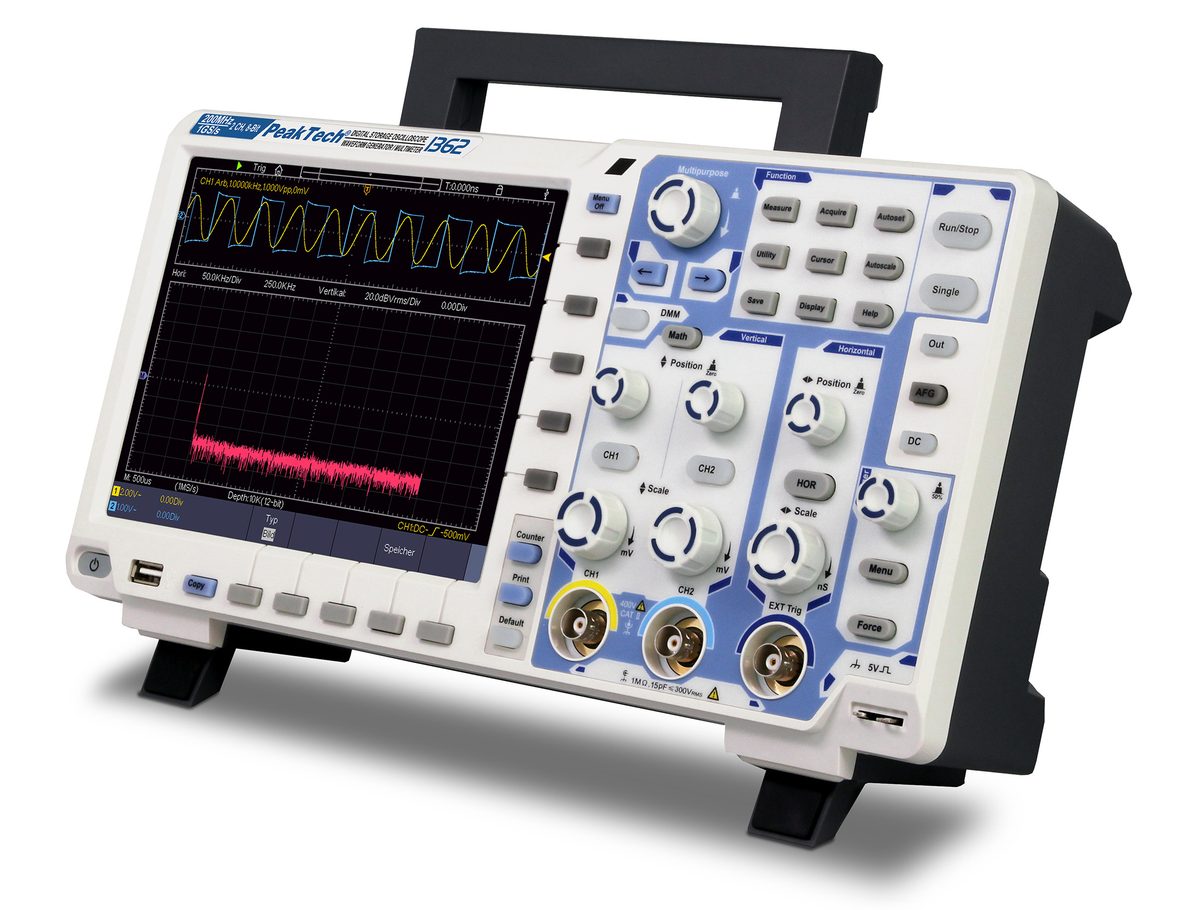

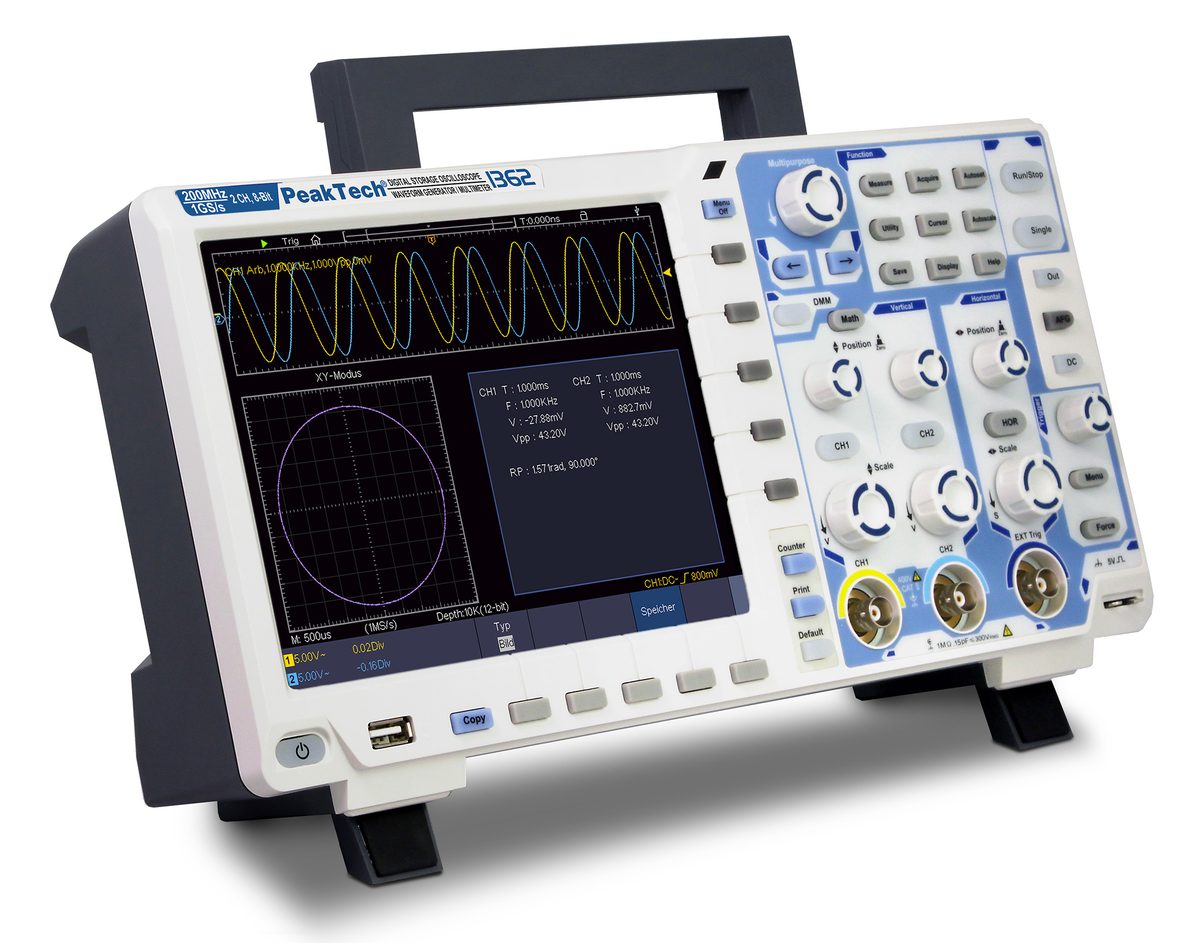

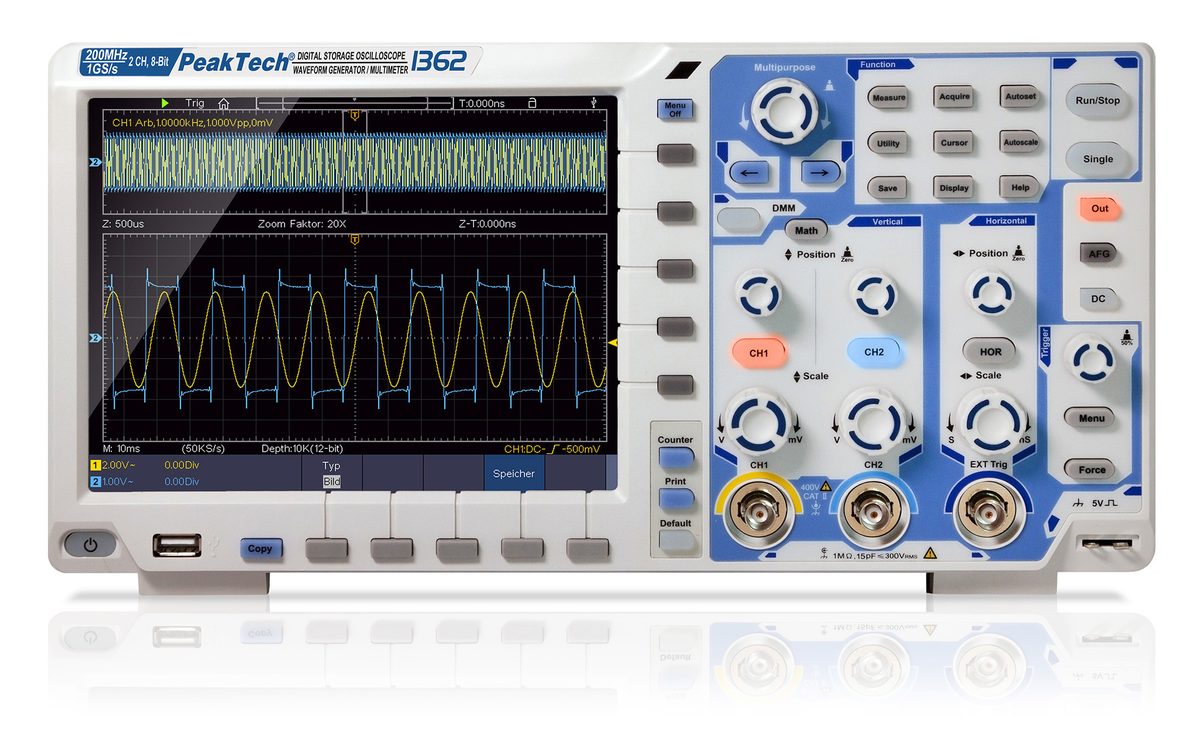

Touchscreen oscilloscope, 200 MHz, 2 channels, 2 GS/s, P 1362
Two-channel digital storage oscilloscope with 200 MHz bandwidth, high-resolution TFT touchscreen and sampling up to 2 GS/s.
Control via function keys, rotary controls or touchscreen: menus, time base, sensitivity and active signal trace can be selected on screen. Zoom and file management, including the on-screen keyboard, can also be operated by touch. Autoset finds a suitable waveform display; Autoscale adjusts the time-base scaling.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 1362
- Sampling 1 CH
- 2 GS/s
- Sampling 2 CH
- 1 GS/s
- USB
- Yes
- Bandwidth
- 200 MHz
- Battery
- Li-Po 13200 mAh (optional)
- Channels
- 2 channels
- Display Type
- TFT touchscreen
- Hor. scale max.
- 1000 s/div
- Hor. scale min.
- 1 ns/div
- LAN
- Yes
- Mains voltage
- 110/240 V AC; 50/60 Hz
- Memory depth
- 40 000 000 points
- Resolution
- 800 × 600 pixels
- Rise Time
- < 1.75 ns
- Screen size (TFT)
- 20 cm (8")
- Vert. resolution
- 8 bit
- Vert. scale max.
- 10 V/div
- Vert. scale min.
- 1 mV/div
- WiFi
- Yes
- Integr. AWG
- Yes
- Integr. DMM
- Yes
from
€1,650.00
Variants & pricing
Touchscreen oscilloscope, 200 MHz, 2 channels, 2 GS/s, P 1362
P 1362€1,650.00
