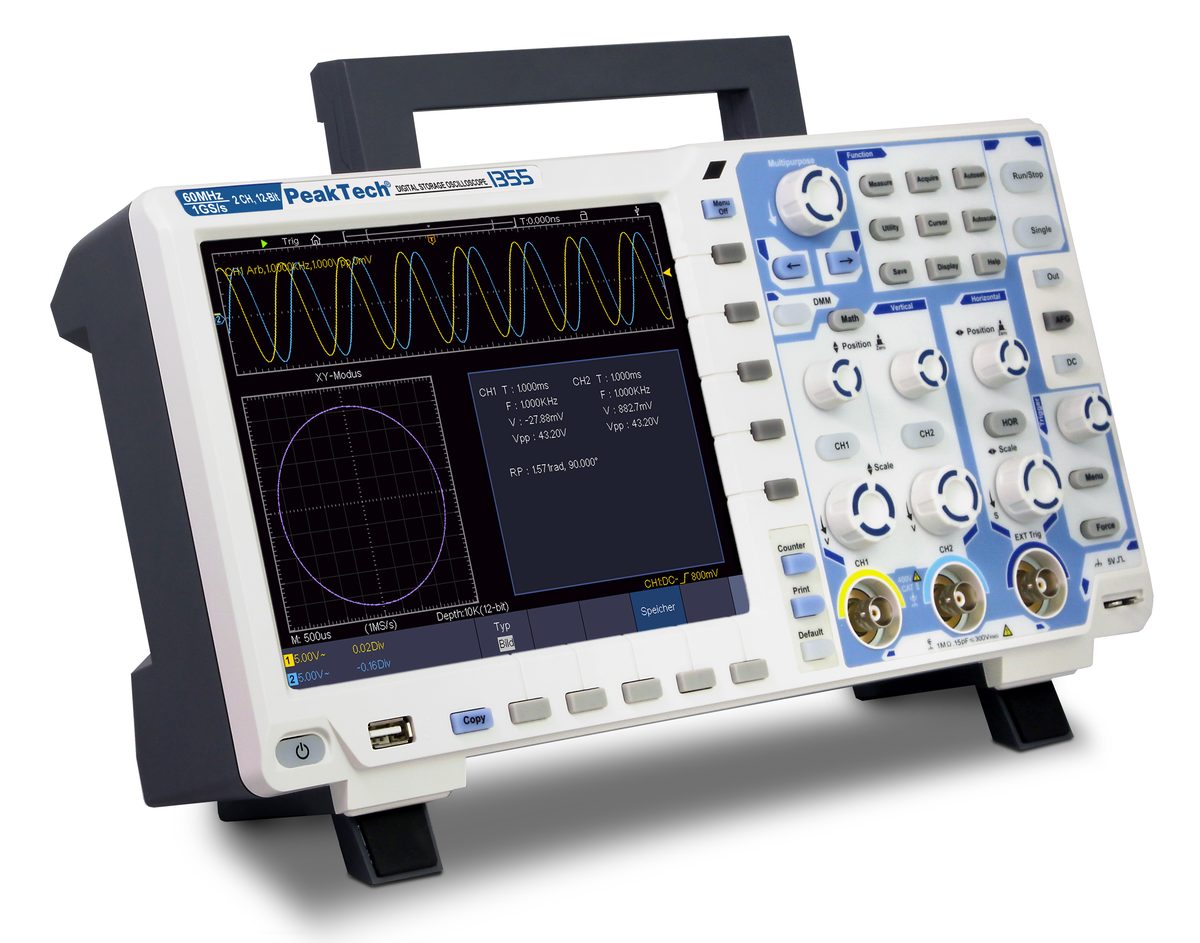

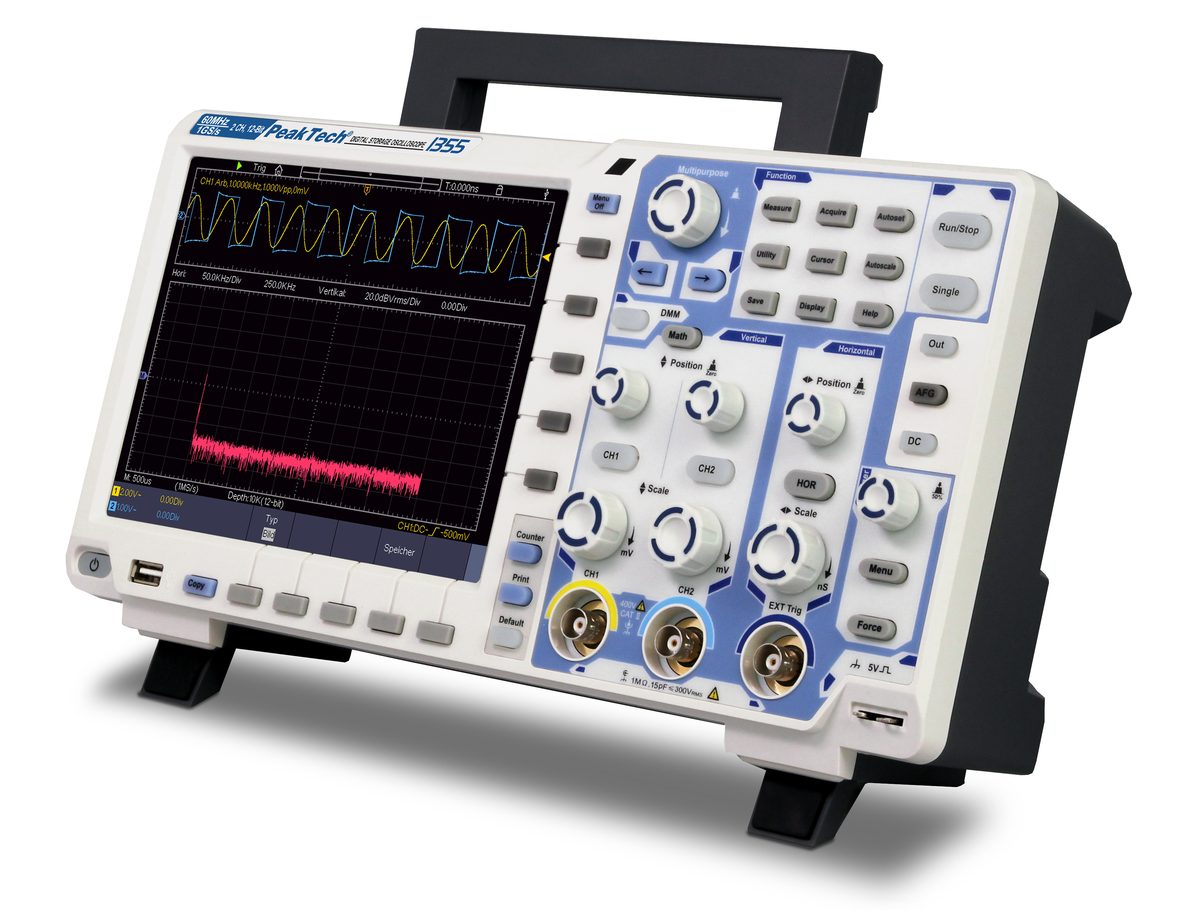

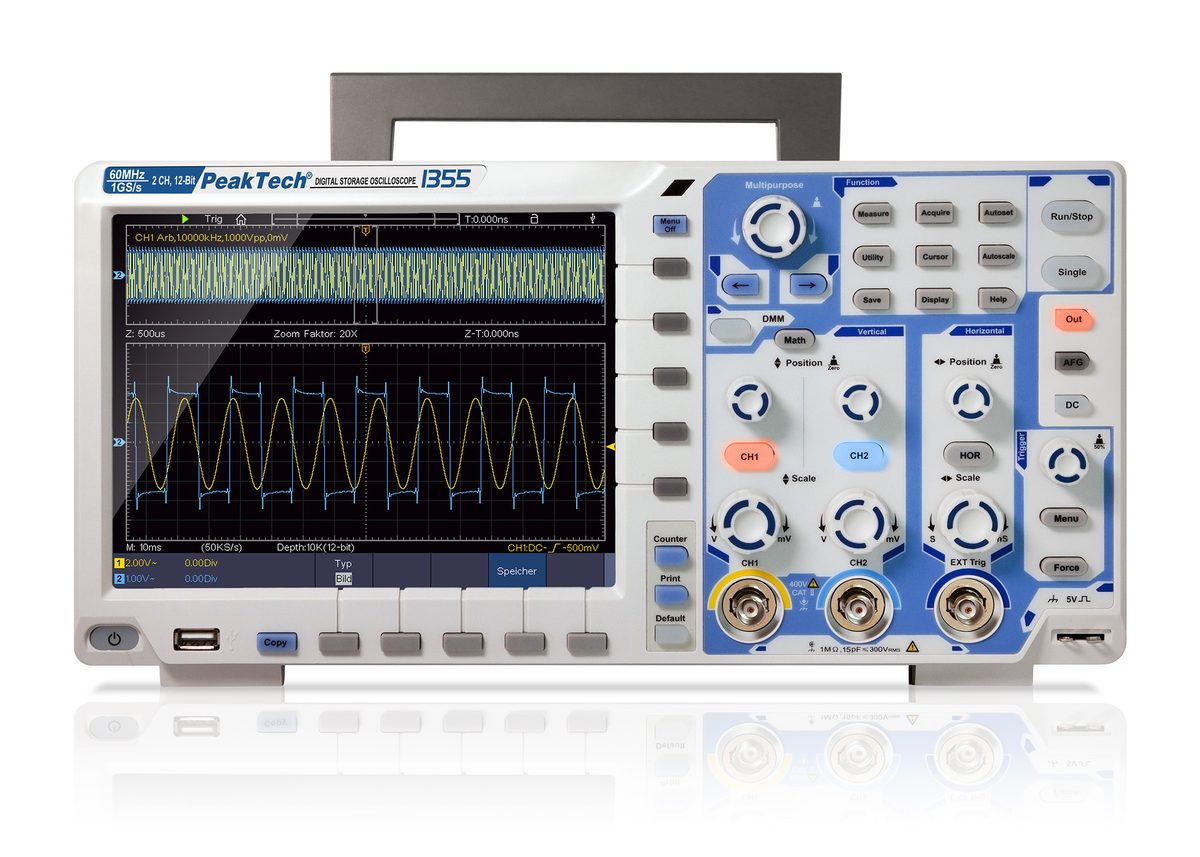

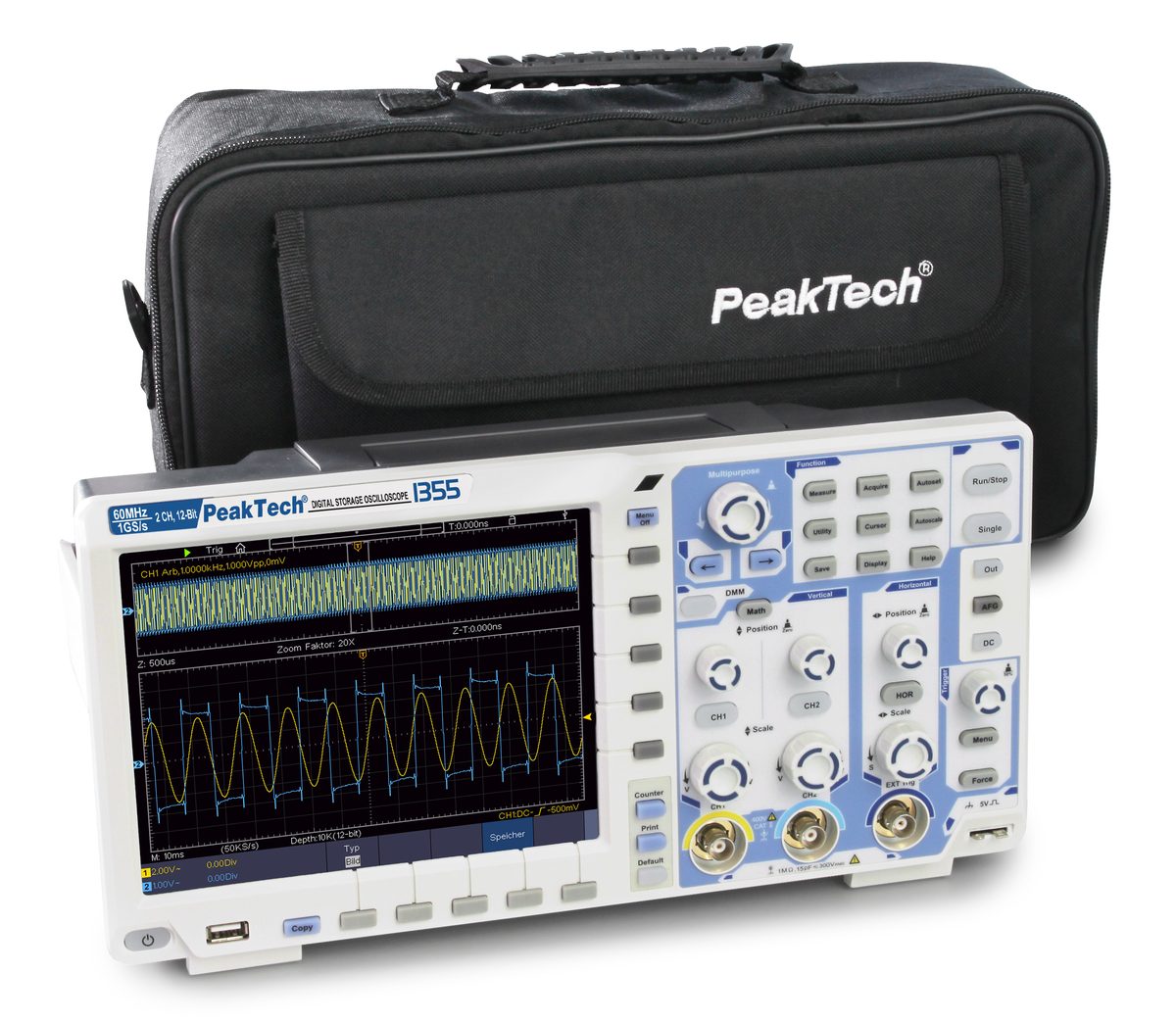

Touchscreen oscilloscope, 60 MHz, 2 channels, 1 GS/s, P 1355
Two-channel digital storage oscilloscope with 60 MHz bandwidth, high-resolution TFT touchscreen and sampling up to 1 GS/s. A 12-bit A/D converter provides 16 times the resolution of an 8-bit oscilloscope for finer waveform detail. Controlled via function keys, rotary controls or touchscreen. An optional battery supports mobile use for a full working day without mains power.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 1355
- Sampling 1 CH
- 1 GS/s
- Sampling 2 CH
- 500 MS/s
- USB
- Yes
- Bandwidth
- 60 MHz
- Battery
- Li-Po 13200 mAh (optional)
- Channels
- 2 channels
- Display Type
- TFT touchscreen
- Hor. scale max.
- 100 s/div
- Hor. scale min.
- 2 ns/div
- LAN
- Yes
- Mains voltage
- 110/240 V AC; 50/60 Hz
- Memory depth
- 40 000 000 points
- Resolution
- 800 × 600 pixels
- Rise Time
- < 5.8 ns
- Screen size (TFT)
- 20 cm (8")
- VGA
- Yes
- Vert. resolution
- 12 bit
- Vert. scale max.
- 10 V/div
- Vert. scale min.
- 1 mV/div
from
€781.00
Variants & pricing
Touchscreen oscilloscope, 60 MHz, 2 channels, 1 GS/s, P 1355
P 1355€781.00
