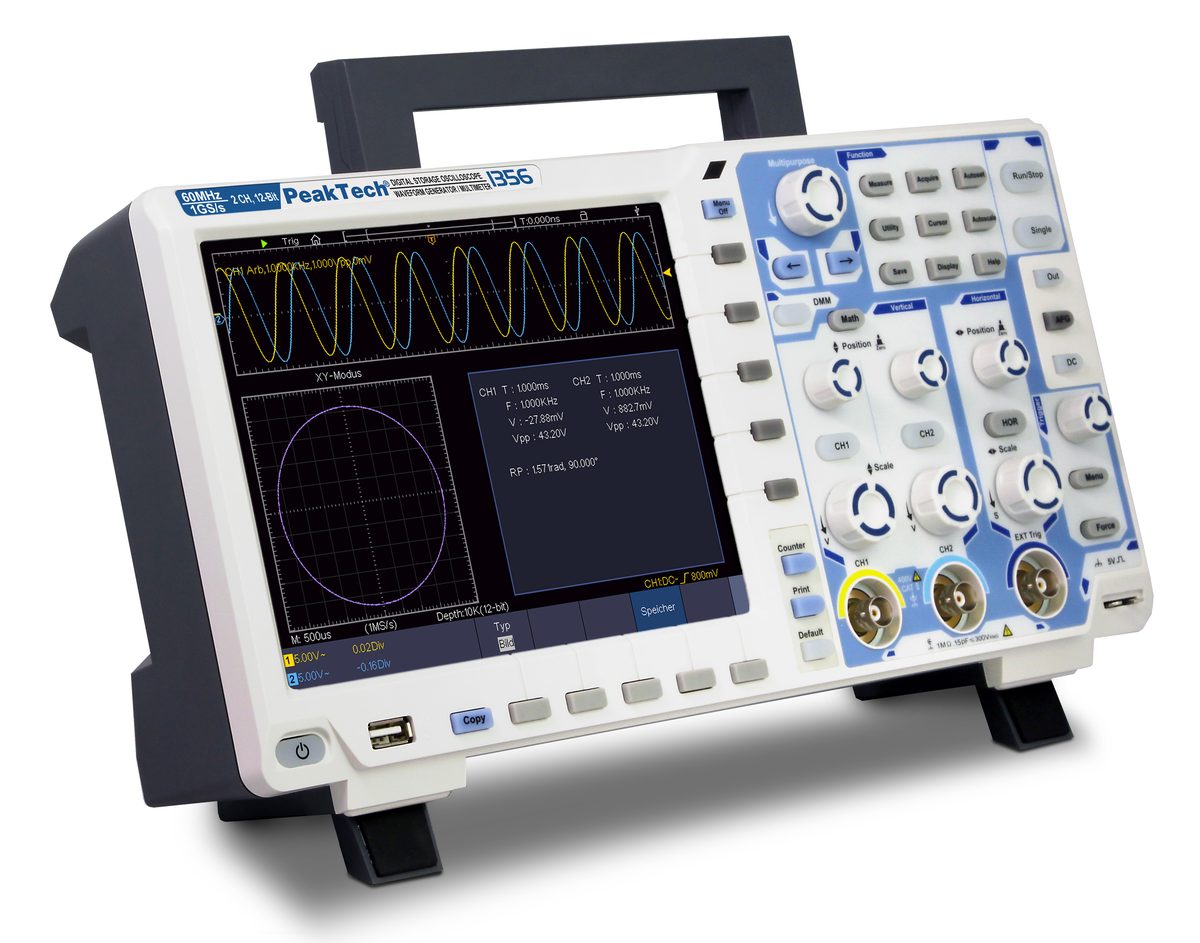

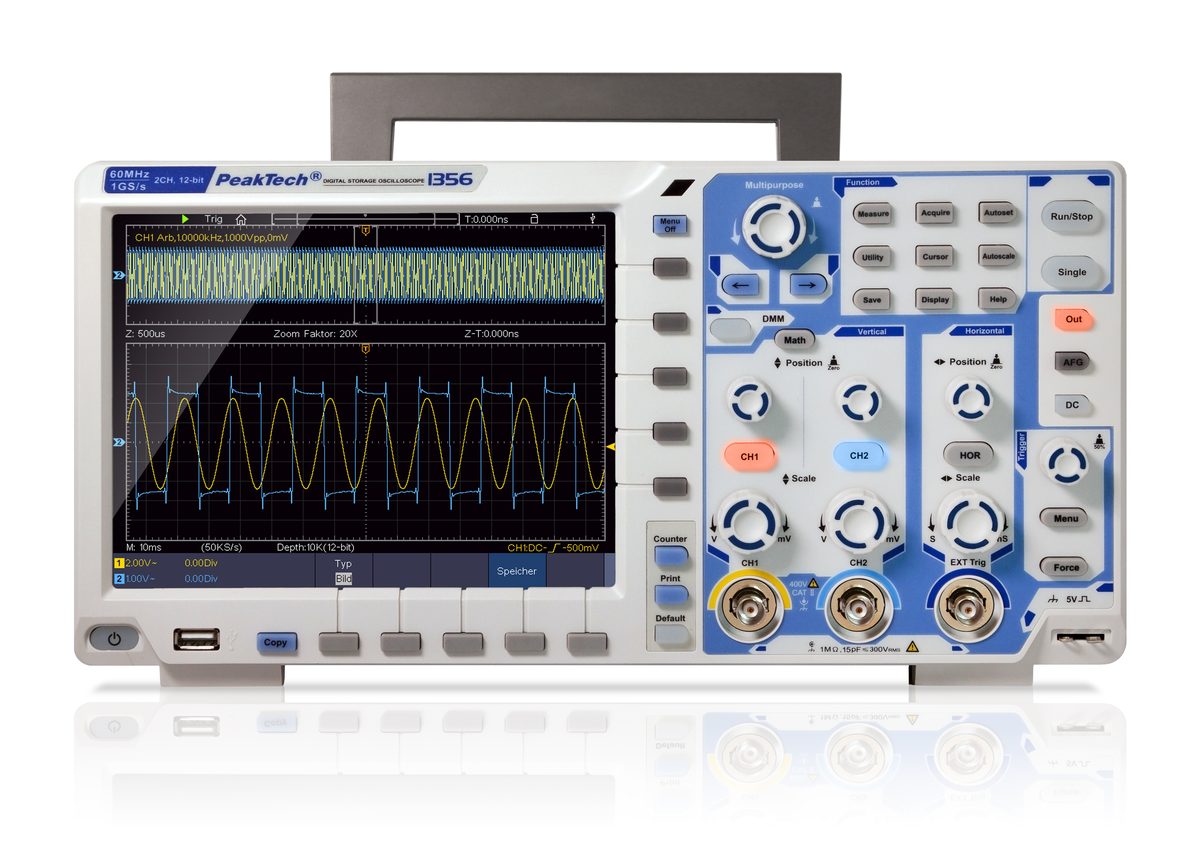

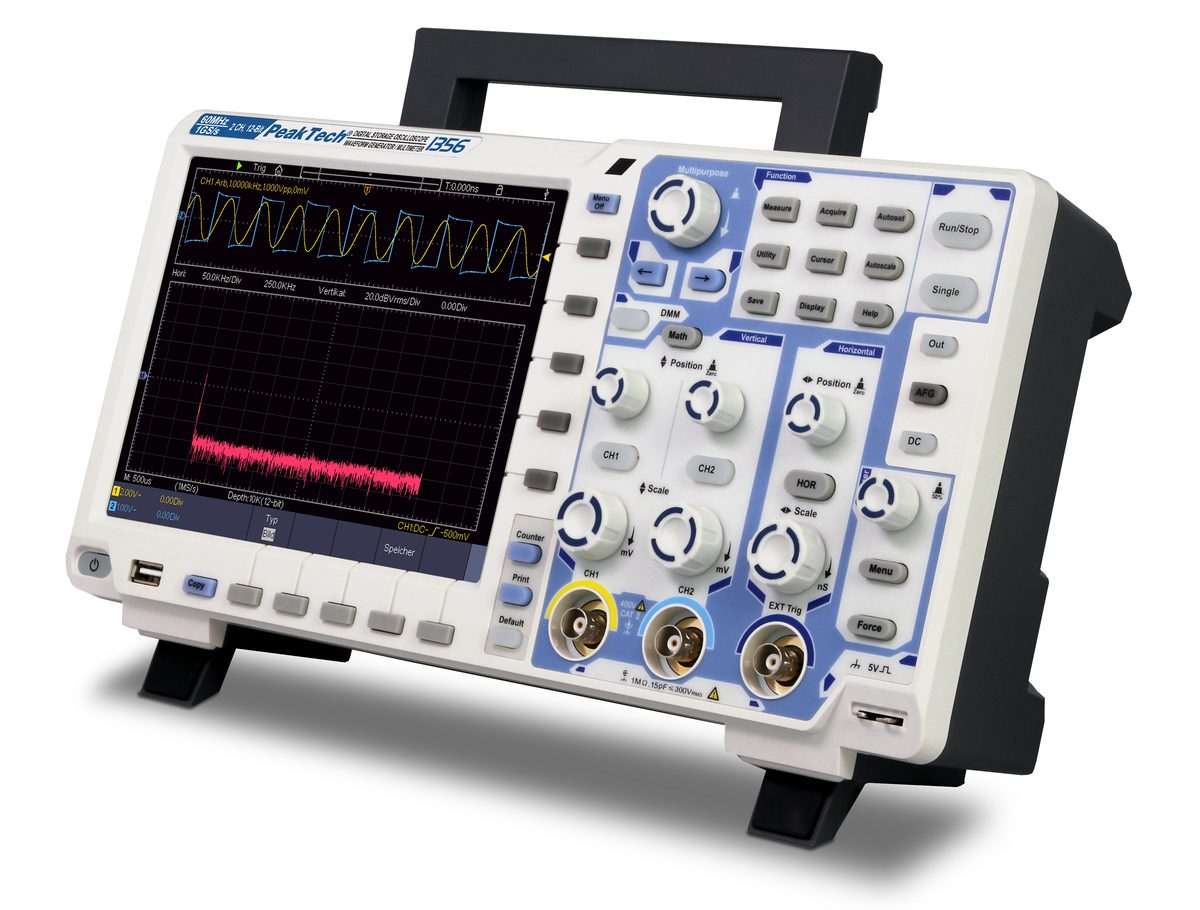

Touchscreen oscilloscope, 60 MHz, 2 channels, 1 GS/s, P 1356
Two-channel digital storage oscilloscope with 60 MHz bandwidth, high-resolution TFT touchscreen and sampling up to 1 GS/s. A 12-bit A/D converter provides 16 times the resolution of an 8-bit oscilloscope for finer waveform detail. Controlled via function keys, rotary controls or touchscreen. Menus, time base, sensitivity and active signal trace can be selected on screen. Zoom and file management, including the on-screen keyboard, can also be operated by touch.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 1356
- Sampling 1 CH
- 1 GS/s
- Sampling 2 CH
- 500 MS/s
- USB
- Yes
- Bandwidth
- 60 MHz
- Battery
- Li-Po 13200 mAh (optional)
- Channels
- 2 channels
- Display Type
- TFT touchscreen
- Hor. scale max.
- 100 s/div
- Hor. scale min.
- 2 ns/div
- LAN
- Yes
- Mains voltage
- 110/240 V AC; 50/60 Hz
- Memory depth
- 40 000 000 points
- Resolution
- 800 × 600 pixels
- Rise Time
- < 5.8 ns
- Screen size (TFT)
- 20 cm (8")
- VGA
- Yes
- Vert. resolution
- 12 bit
- Vert. scale max.
- 10 V/div
- Vert. scale min.
- 1 mV/div
- Integr. AWG
- Yes
- Integr. DMM
- Yes
from
€902.00
Variants & pricing
Touchscreen oscilloscope, 60 MHz, 2 channels, 1 GS/s, P 1356
P 1356€902.00
