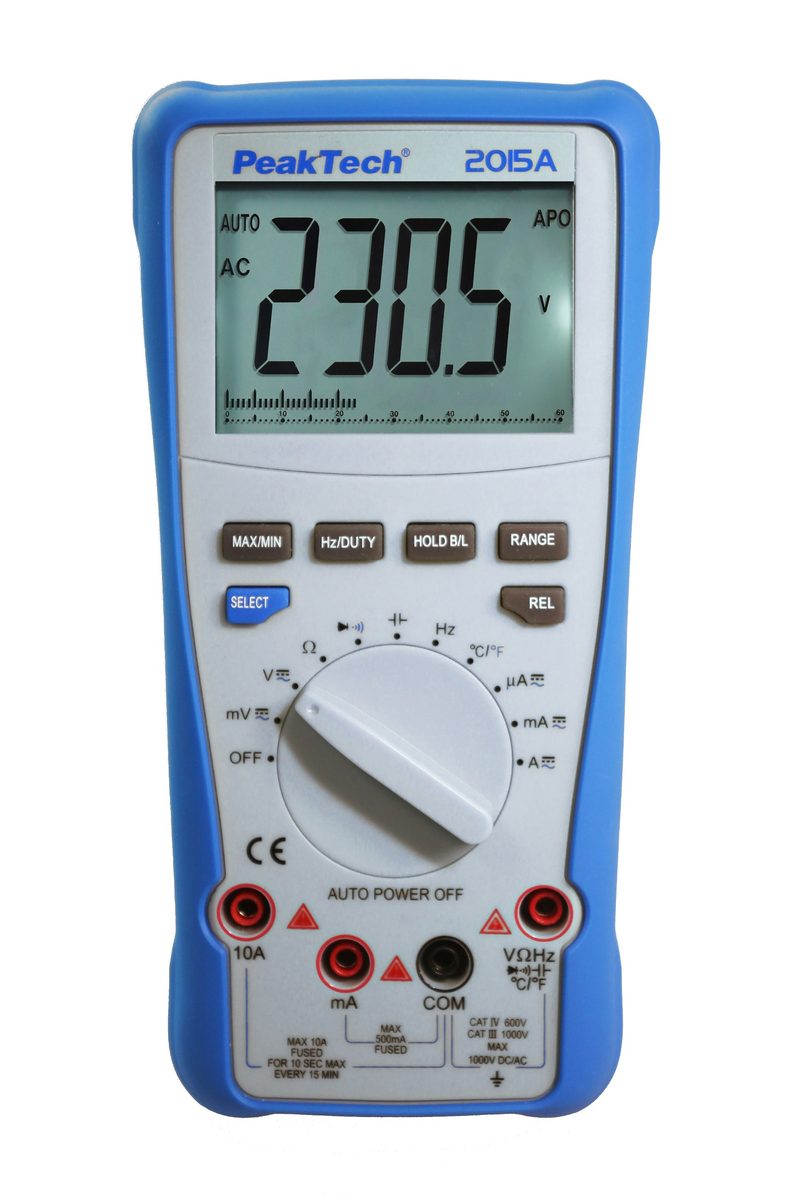

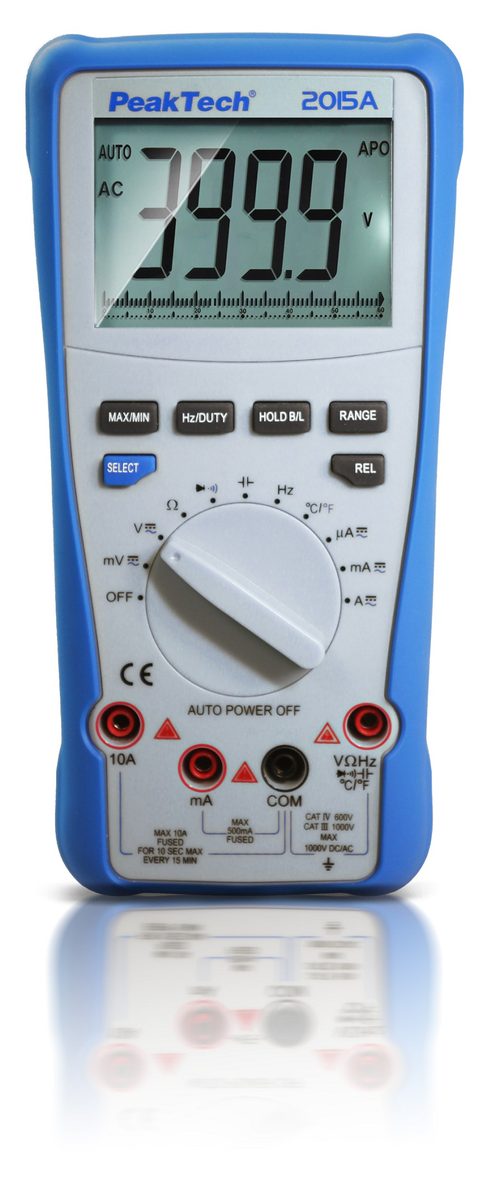

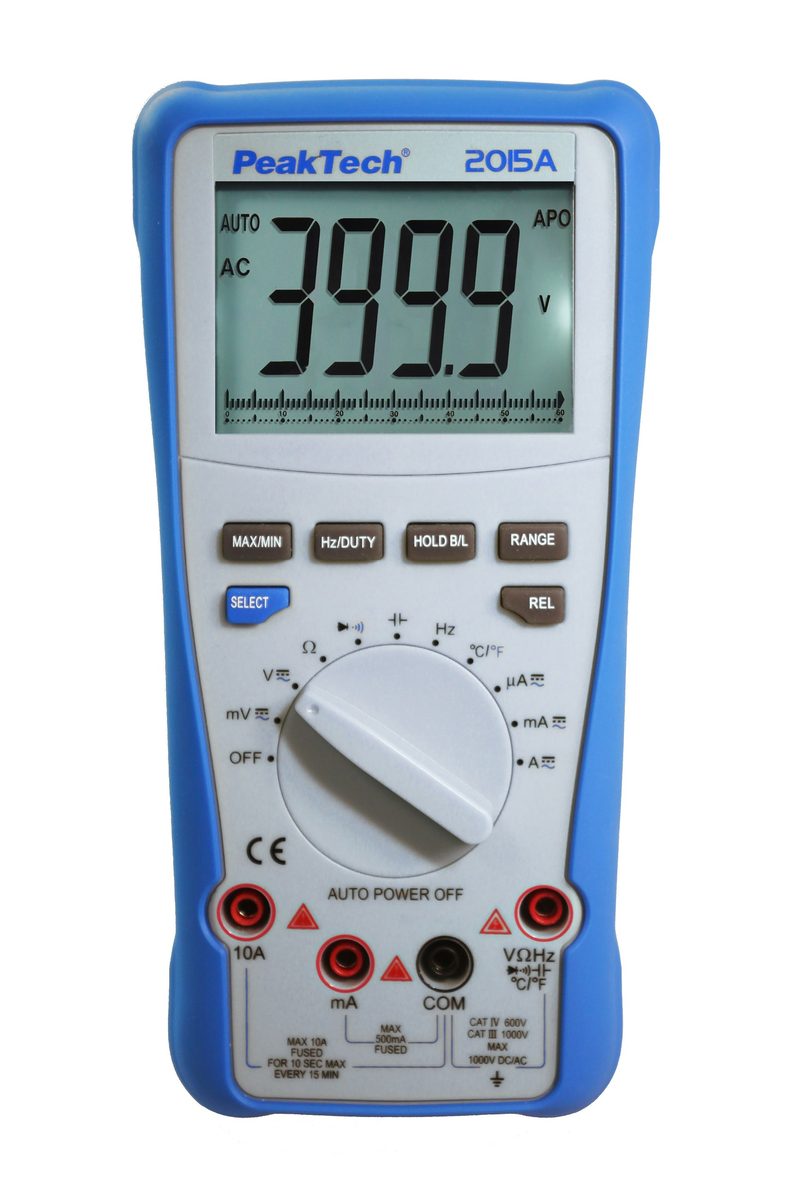

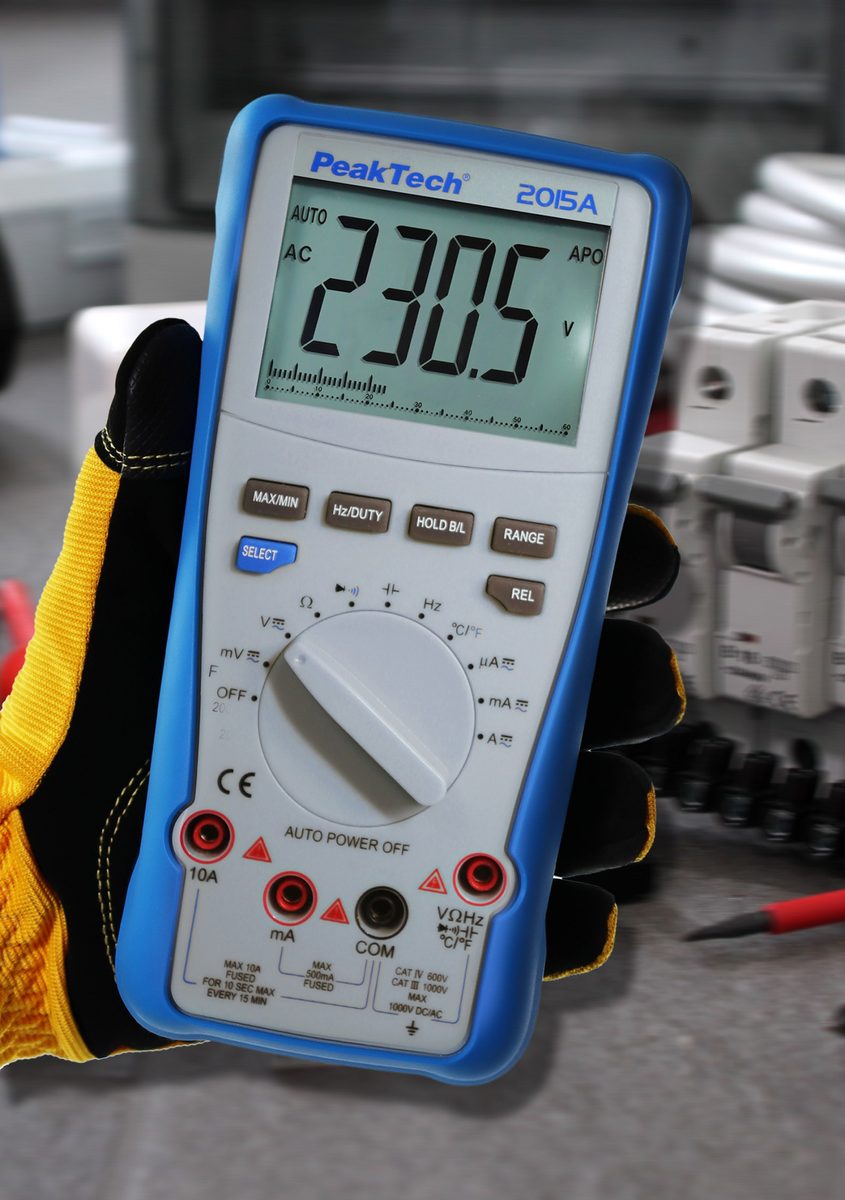

True RMS digital multimeter, 1000 V, 4000 counts, P 2015 A

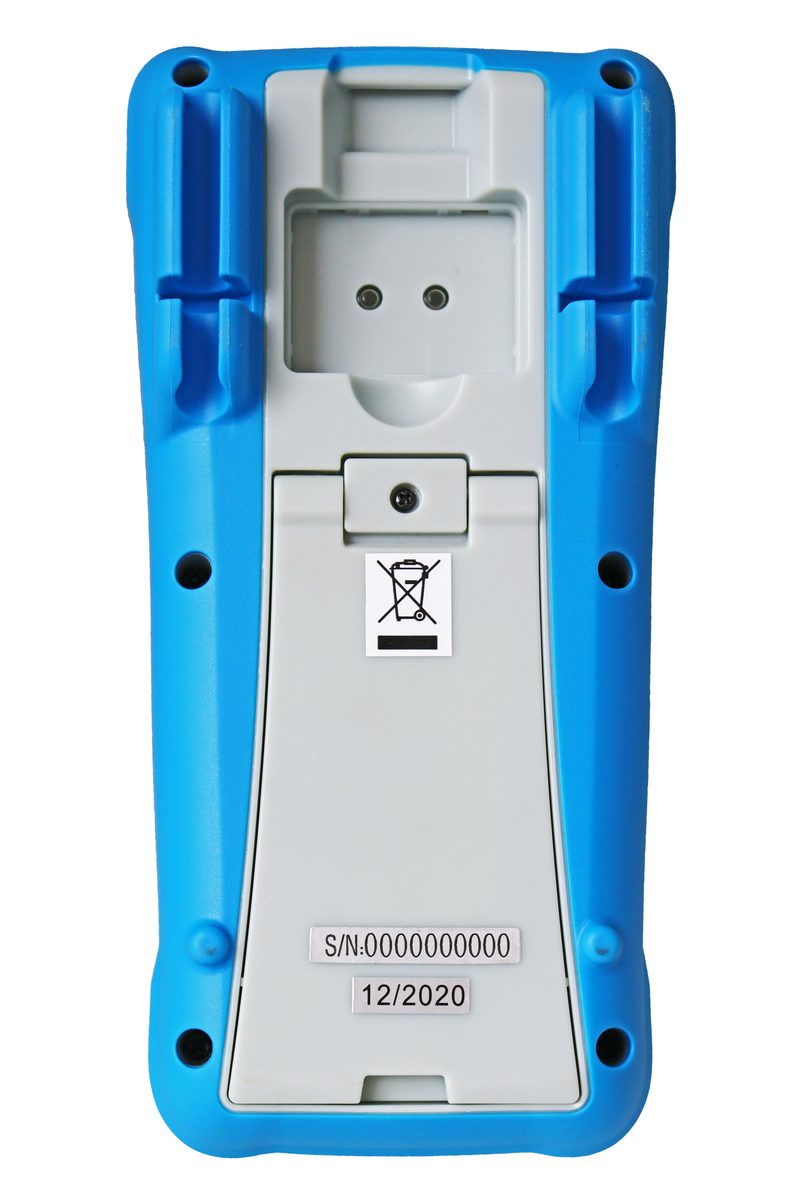

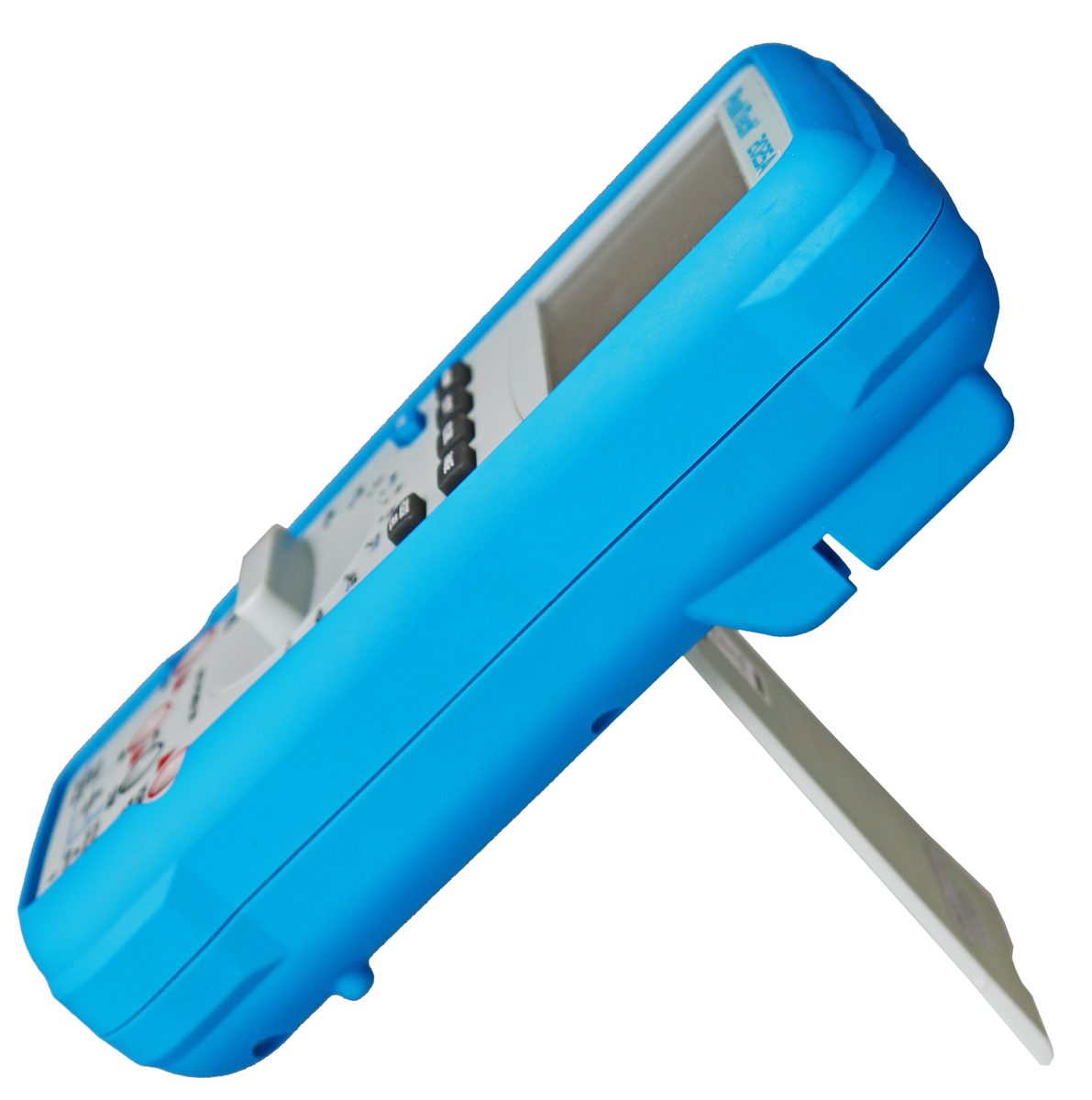

Multimeter for electrical measurements in industry, trades, training, private use and laboratories. Double-insulated injection-moulded housing with rubber coating and rear tilt stand; removing the stand gives access to batteries and fuses. Battery powered, with an LCD featuring 27 mm characters and a 61-segment bar graph. Automatic range selection and a backlit display. Rated CAT III 1000 V for electrical installations and systems.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 2015 A
- Basic Accuracy DC
- ± 0,5 %
- Battery
- 9 V block battery
- Capacitance max.
- 400 µF
- Display counts
- 4 000
- Display Type
- LCD
- Over voltage category
- CAT III 1000 V, CAT IV 600 V
- Range selection
- Automatic
- True RMS
- Yes
- V DC max.
- 1000 V
- A AC max.
- 10 A
- Hz max.
- 10 MHz
- OHM max.
- 40 MΩ
- Temp. max.
- 1000 °C
- Temp. min.
- -20 °C
- mA DC max.
- 400 mA
- mV DC max.
- 400 mV
- µA DC max.
- 4000 µA
- V AC max.
- 1000 V
- mV AC max.
- 400 mV
- A DC max.
- 10 A
- mA AC max.
- 400 mA
- µA AC max.
- 4000 µA
from
€55.00
Variants & pricing
True RMS digital multimeter, 1000 V, 4000 counts, P 2015 A
P 2015 A€55.00
