Power supplies & measuring instruments

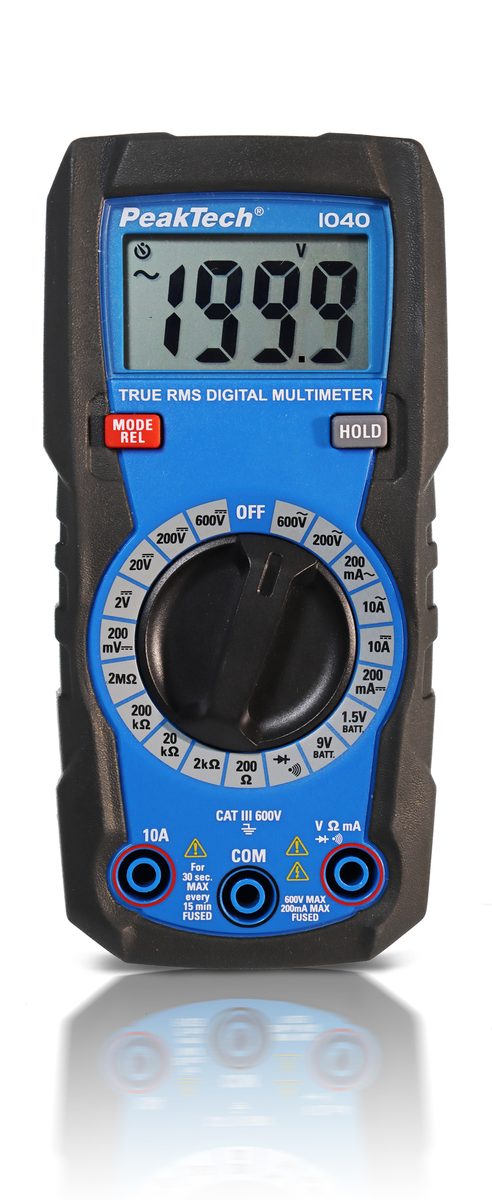

True RMS digital multimeter, 2000 counts, manual range, P 1040

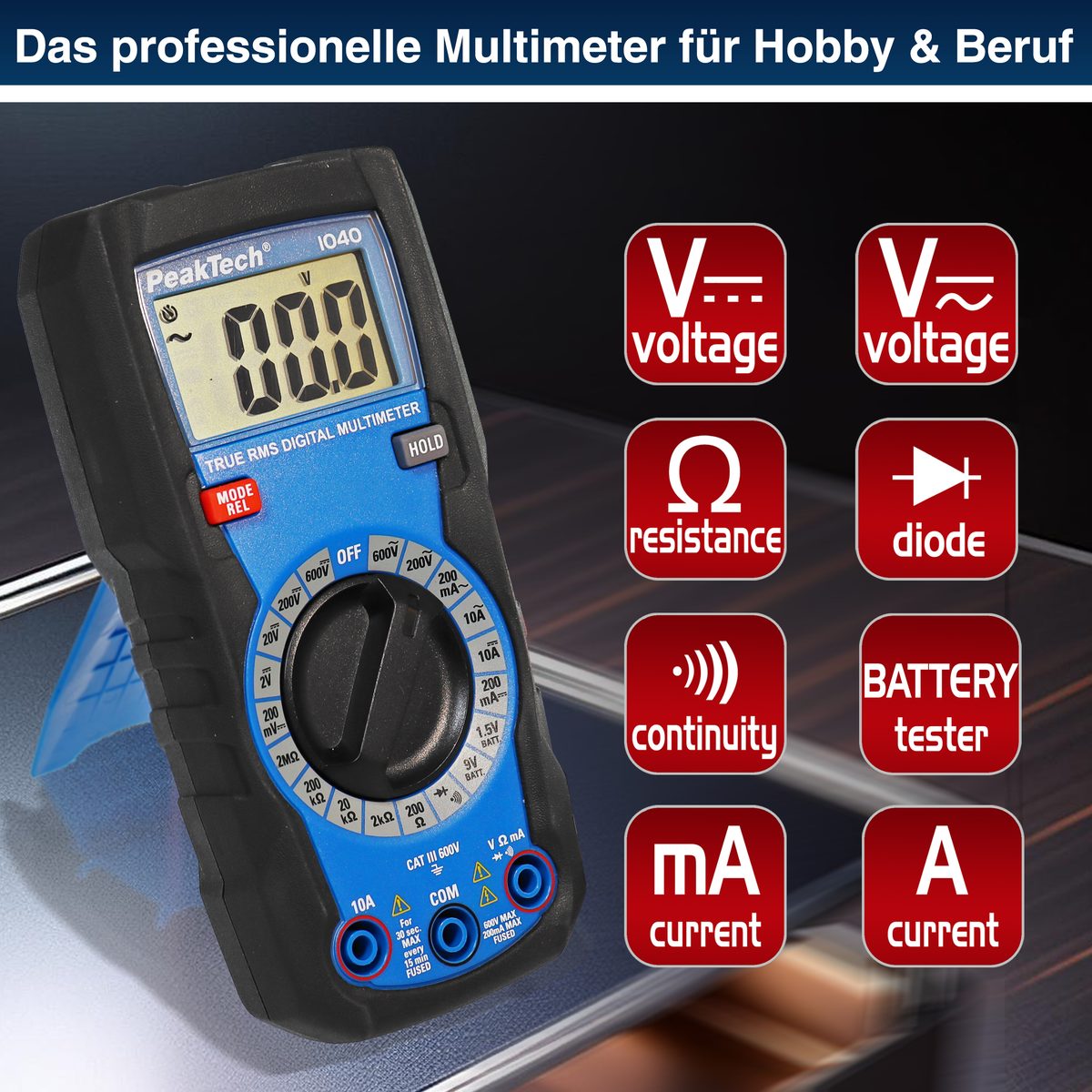

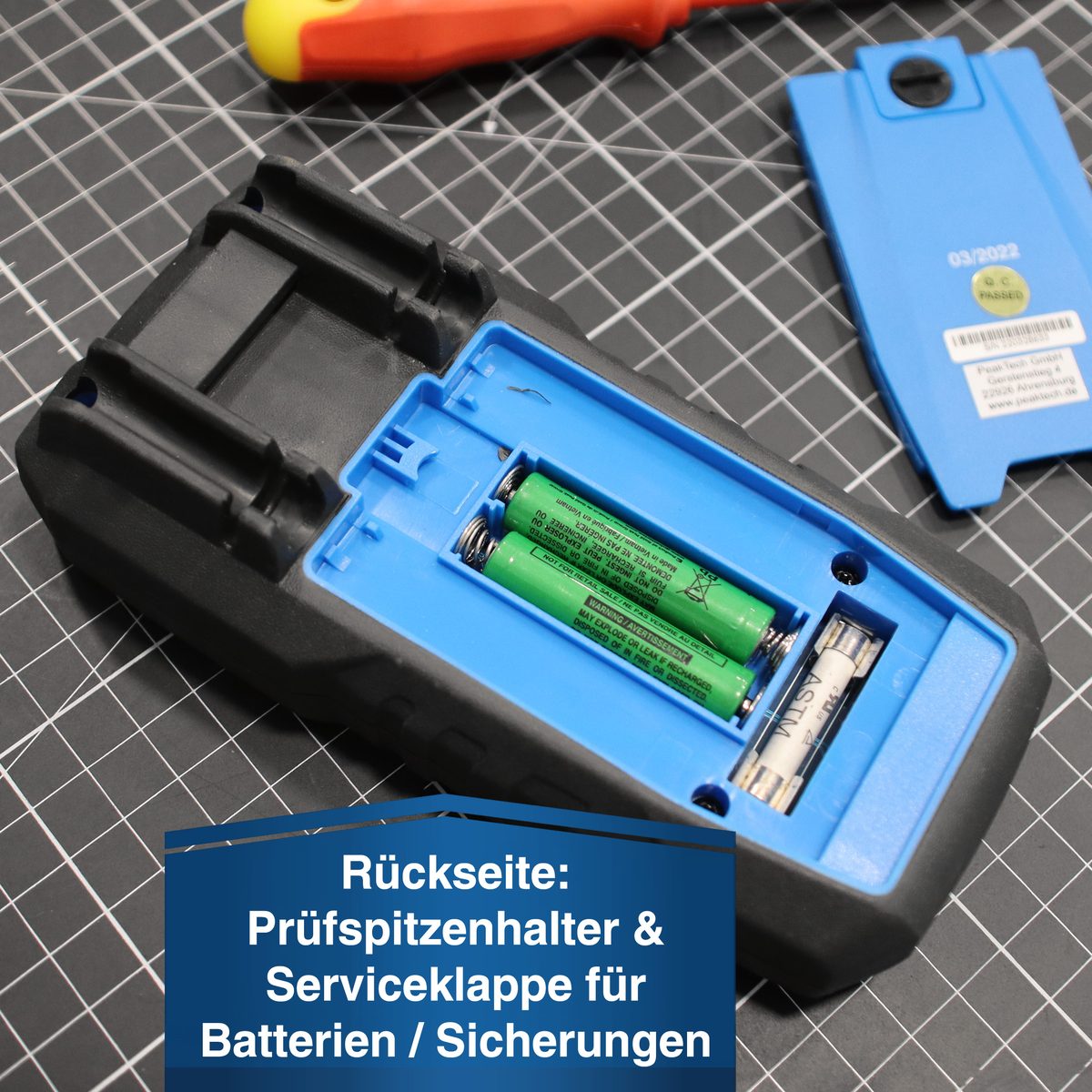

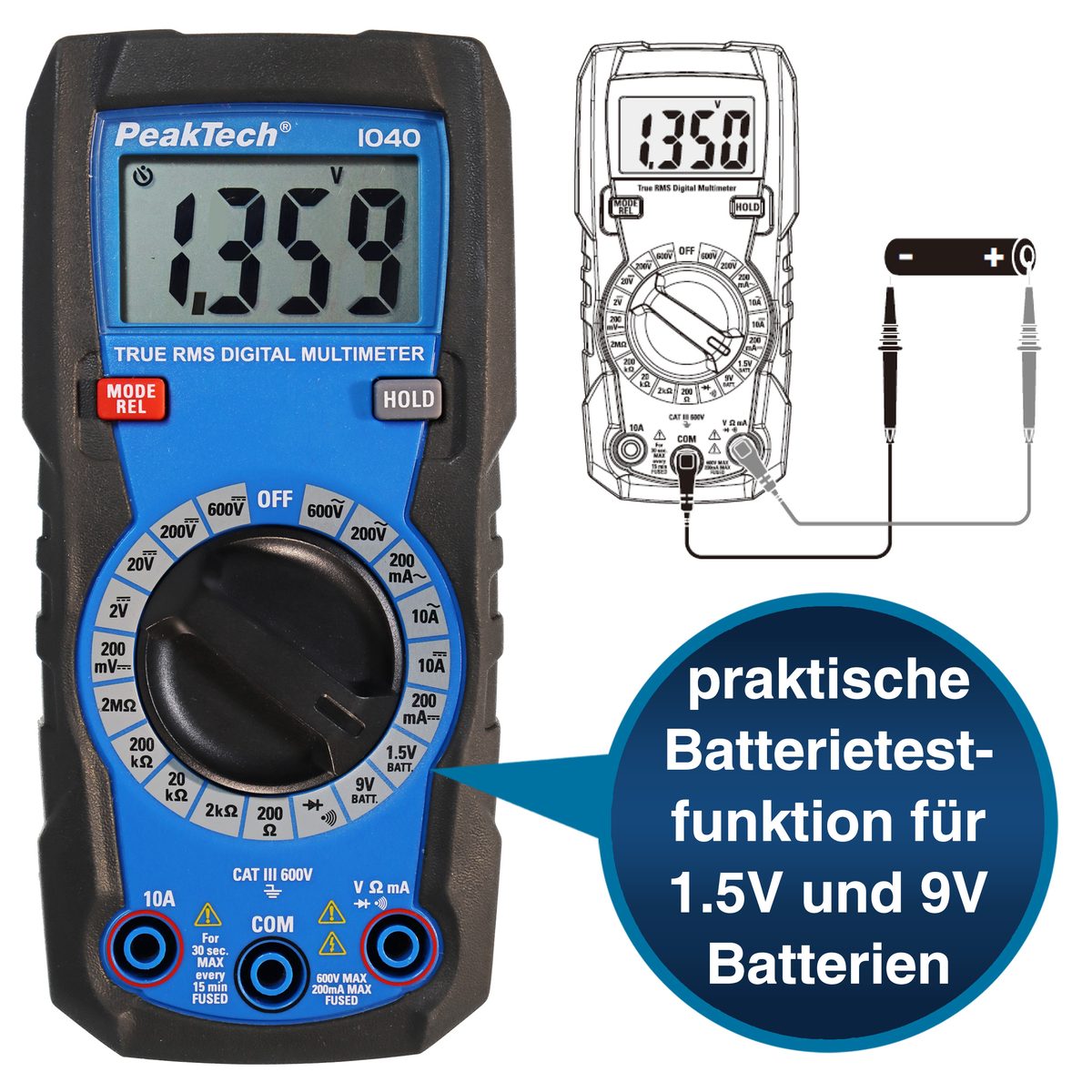

Compact True RMS multimeter in a robust housing for electrical trades. Measures DC/AC voltage up to 600 V, DC/AC current up to 10 A and resistance; includes continuity and diode tests and a battery test for 9 V and 1.5 V batteries. Manual range selection gives a fast response. Rated CAT III 600 V with a double-insulated housing. Batteries and ceramic fuses are accessible through the rear battery compartment.
Also listed in: Education: Power supplies & measuring instruments
Specifications
- Brand
- PeakTech · P 1040
- Basic Accuracy DC
- ± 0,5 %
- Battery
- 1,5 V AAA
- Battery Test
- 1,5 V, 9 V
- Display counts
- 2 000
- Display Type
- LCD
- Over voltage category
- CAT III 600 V
- Range selection
- Manual
- True RMS
- Yes
- V DC max.
- 600 V
- A AC max.
- 10 A
- OHM max.
- 2 MΩ
- mA DC max.
- 200 mA
- mV DC max.
- 200 mV
- V AC max.
- 600 V
- A DC max.
- 10 A
- mA AC max.
- 200 mA
from
€32.00
Variants & pricing
True RMS digital multimeter, 2000 counts, manual range, P 1040
P 1040€32.00
