Power supplies & measuring instruments

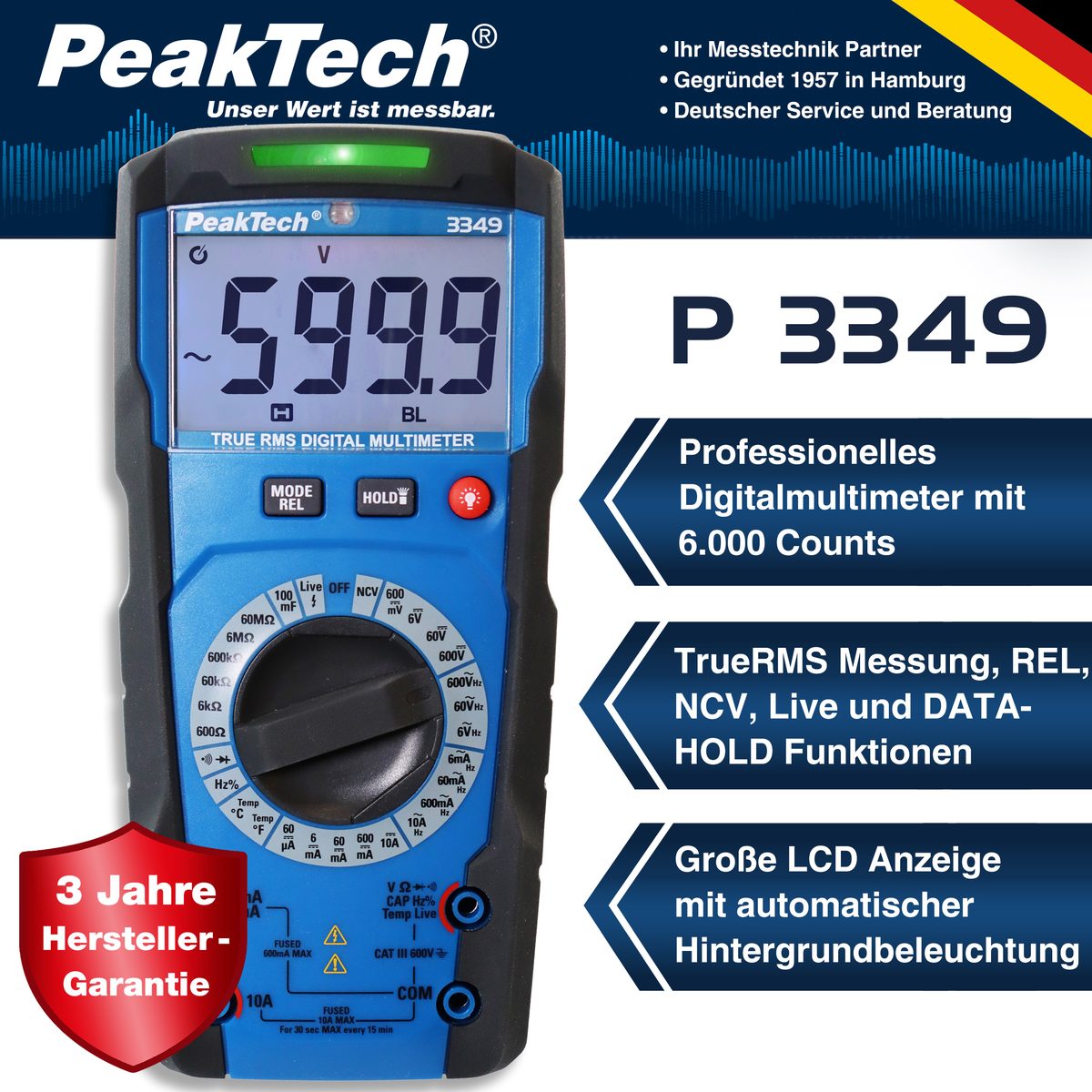

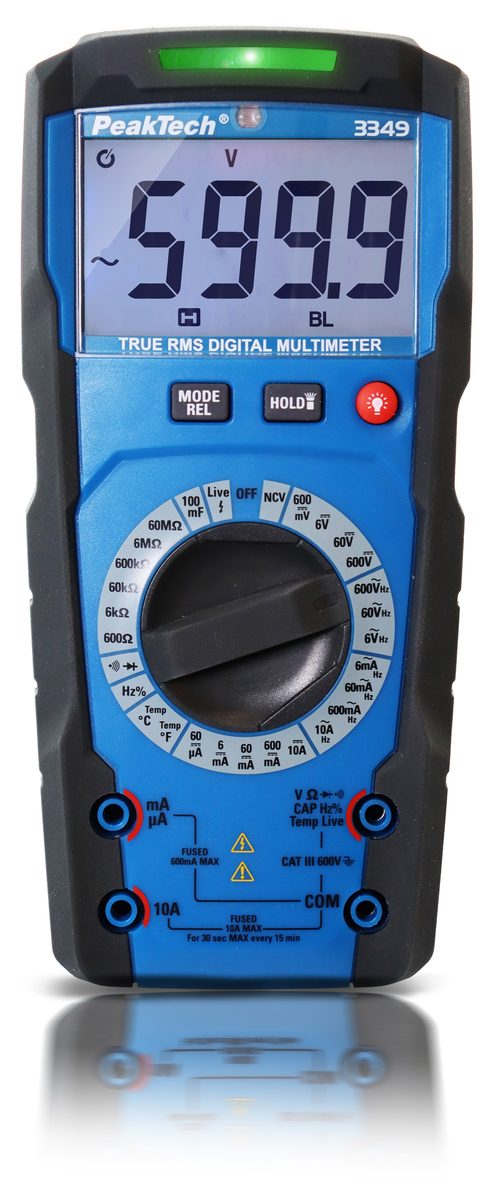

True RMS digital multimeter, 6000 counts, manual range, P 3349

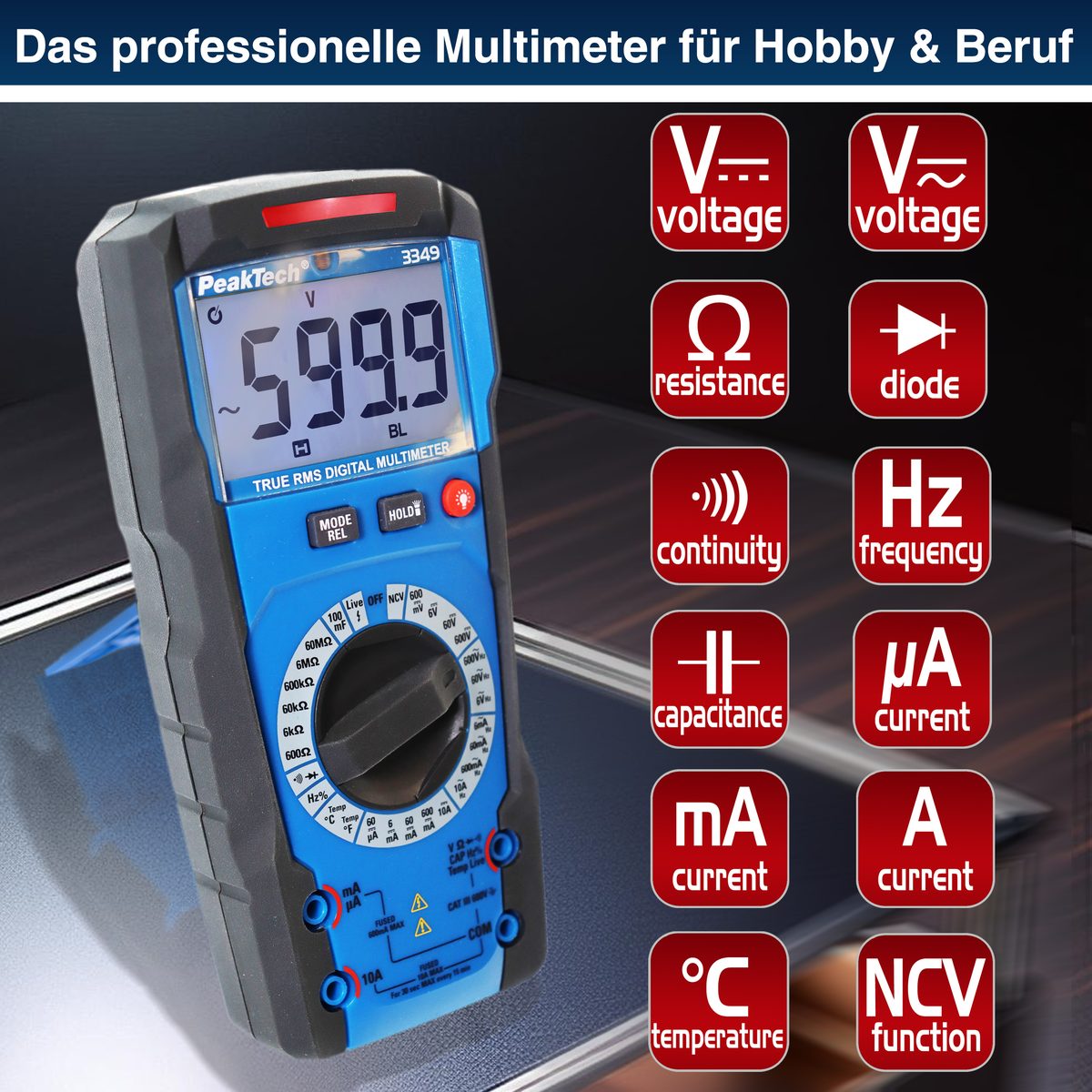

Multimeter for trades and industry, including dark or noisy environments. A photodiode automatically activates the large LCD backlight in darkness; a rear LED flashlight illuminates the measurement area. Above the 6000-count display, a multicolour LED bar lights green for continuity, red when NCV detects voltage, yellow for large capacitances and flashes red in LIVE phase-test mode. Measures True RMS current and voltage, capacitance, resistance, frequency and temperature; includes continuity, diode, non-contact voltage and phase tests, relative mode and data hold.

Double-insulated injection-moulded housing with rubber coating and rear tilt stand; removing the stand gives access to batteries and fuses. Manual range selection provides fast response.

Also listed in: Education: Power supplies & measuring instruments

Specifications

Brand
PeakTech · P 3349
Basic Accuracy DC
± 0,5 %
Battery
1,5 V AAA
Capacitance max.
60 mF
Display Type
LCD
Info-LEDs
Yes
LED-lamp
Yes
NCV
Yes
Over voltage category
CAT III 600 V
Range selection
Manual
True RMS
Yes
V DC max.
600 V
A AC max.
10 A
Hz max.
10 MHz
OHM max.
60 MΩ
Temp. max.
1000 °C
Temp. min.
-18 °C
mA DC max.
600 mA
mV DC max.
600 mV
µA DC max.
60 µA
V AC max.
600 V
A DC max.
10 A
mA AC max.
600 mA

from

€50.00

All options (1)

Variants & pricing

  • True RMS digital multimeter, 6000 counts, manual range, P 3349

    P 3349€50.00
