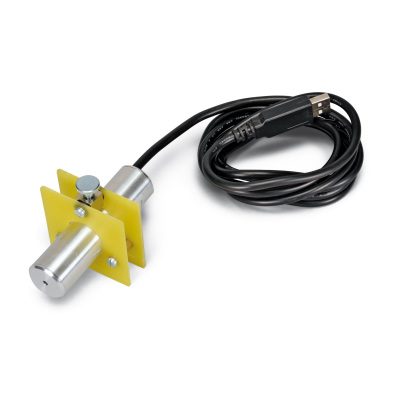

X-Ray Energy Detector
This X-ray detector records energy spectra of X-rays and gamma radiation in the approximate 2–60 keV range. It is designed for experiments in X-ray energy and fluorescence spectroscopy, the Compton effect, absorption, Bragg reflection, and the Duane–Hunt and Moseley laws. The detector mounts on the swivelling arm of the X-ray apparatus U192001 and U192001-US and connects to a PC via USB.
Specifications
- Brand
- 3B Scientific · 1008629
- Energy range
- 2 keV up to 60 keV approx.
- Energy resolution (FWHM)
- 0.55 keV @ E FeKα = 6.40 keV
- Entrance window
- Plastics (absorption equivalent to Graphite with d = 40 µm)
- Detector
- Si-PIN photo diode
- Active Area
- 0.8 mm dia.
- Thickness
- 200 µm approx.
- Dead time per pulse
- 200 µs approx.
- Connection
- USB
- Cable length
- 1.75 m
- Dimensions
- 80 mm x 22 mm dia.
- Mass
- 150 g
- Weight
- 0.161 kg
from
€2,232.00
Variants & pricing
X-Ray Energy Detector
1008629€2,232.00
